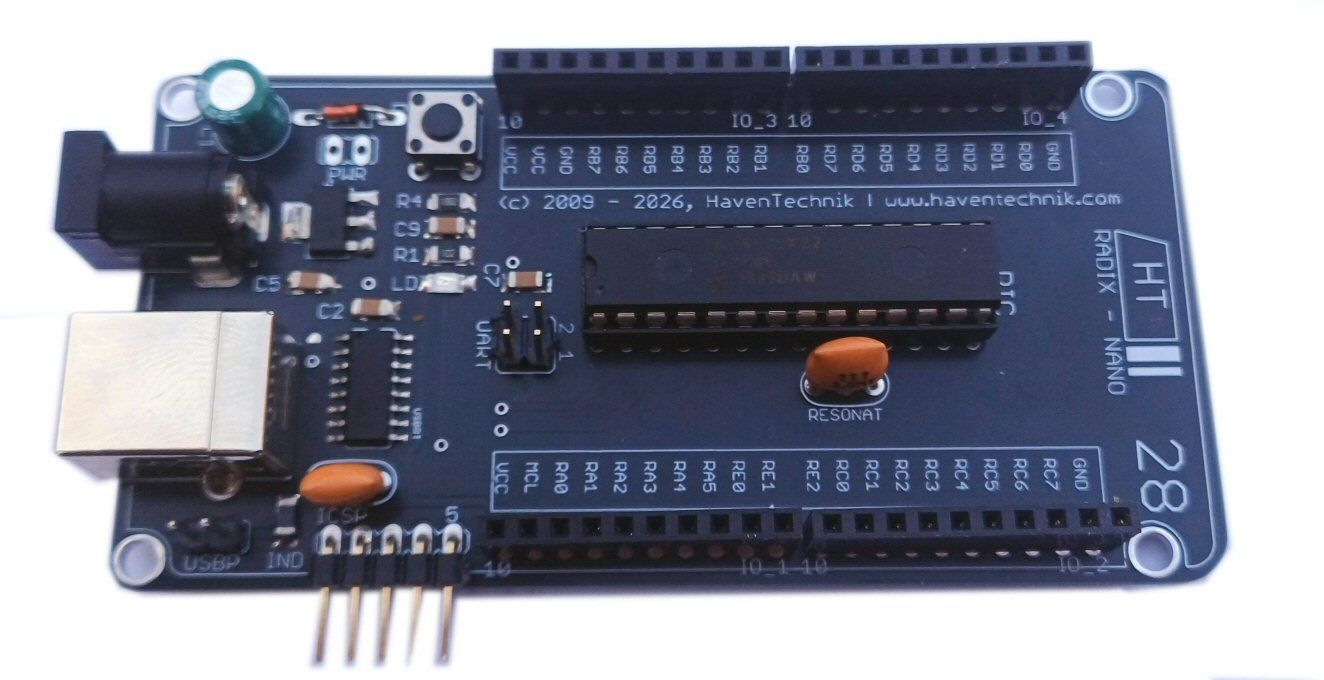

Radix Nano NxT - 28 PIN

The Radix NxT is the next iteration in our PIC development platform evolution. This iteration ensures that all device packages from 8 to 44 PIN share the same platform features centered around a development shield. The shield offers a standard layout and pinout that is compatible across the range of development boards, which ensures that the application can be ported from one device to the next with no changes, taking advantages of specific device features as you migrate.

The Radix Nano NxT 28

• Supported Devices
  • Device Families: 16Fxx 18Fxx
  • Device Packages: 28
• Device Features
  • Supports F, K device variants
  • All IO tracked to 2.5mm Headers
  • 24 I/O device dependent
• Development Board Features
  • 2.1 MM DC Jack, reverse polarity protection
  • USB Powered (Ferrite surge protection)
  • LED Power On indication
• Communications | Programming
  • CHG340 USB UART
  • ICSP Header for programming
  Device Documentation: Read More
